Inverex AEROX PLUS 5.2 KW SOLAR

7.9
Expert ScoreRead review
  • Model:  Aerox Plus 5.2 KW Inverter
  • Efficiency: 97%
  • Rated Power: 5200 VA / 5200 W
  • Weight: 10KG
  • Surge Power: 10400VA
  • Frequecy Range: 50 HZ / 60 HZ

Original price was: ₨ 87,500.Current price is: ₨ 87,000.

Added to wishlistRemoved from wishlist 10
Add to compare

Inverex Aerox Plus 5.2 KW Solar Inverter Price in Pakistan is 140,500/

Inverex Aerox Plus 5.2 KW solar inverter Price in Pakistan is PKR 140,500. This is one of the leading solar companies in Pakistan. They provide a lot range of customized integrated solar solutions and home products to different sectors. The manufacturing and suppling plant is in China. Mr. Zakir Ali is the owner of Inverex. The Inverex Invertor provide the power to various appliances in home or office environment. Including motor type appliances such as Air conditioner, refrigerator, light, fan etc. It Is the upgraded smart generation and intelligent solar inverters. Advanced MPPT solar charger up to 50 AMP and battery equalization.

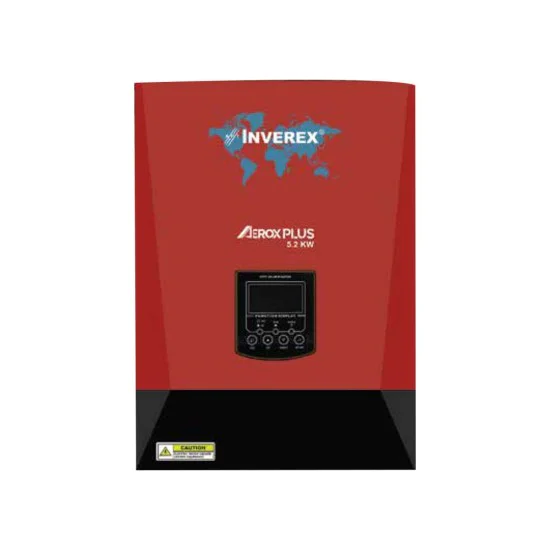

aerox-plus-5-2-kw-inverter-Price in Pakistan

Specification:
  • Model:  Aerox Plus 5.2 KW Inverter
  • Efficiency: 97%
  • Rated Power: 5200 VA / 5200 W
  • Weight: 10KG
  • Surge Power: 10400VA
  • Frequecy Range: 50 HZ / 60 HZ
  • Voltage:  230 VAC



Specifications

Model Number:          5.2KW

Input

Voltage:                                        230 VAC

Selectable Voltage Range:    170-280 VAC (for personal computer) 90-280 VAC (for home                                                                                                                                                  appliances)

Frequency Range:                 50 Hz/60 Hz (Auto sensing)



Output (Off Grid)

AC voltage Regulation (Batt. Mode): 230 VAC ±5%

Overland Capacity: 5s at ≥150% load; 10s at 110%-150% load; 100ms at ≥200% load

Efficiency Peak:                          90%

Transfer Time:                            10 ms (for personal computer), 20 ms (for home appliances)

Wave form:                                   pure sine wave



Output (Grid-Tie Operation)

Nominal Output Voltage: 220/230/240/ VAC

Output Voltage Range: 184-264.5 VAC or 195.5-253 VAC (Selectable)

Nominal Output Current: 22A

Power Factor: >0.99

Battery

Battery Voltage:                    48 VDC

Floating Charge Voltage:      54 VDC

Overcharge Protection:        64 VDC



Solar Charger and AC Charger

Solar Charger Type:                        MPPT

Minimum PV Array open circuit:  450 VDC

Medium PV Array Power: 5000W

MPP Range at operating range:    120-430 VDC

Maximum Solar Charge Current:   80 A

Maximum AC charge current:        80 A



Dimensions

Width:                         295mm

Height:                        465mm

Depth:                         140mm

Net Weights:              12.2 Kgs

Communicating Interface: USB/RS232



Operating Environment

Humidity:    5% TO 95% Relative Humidity (Non-Condensing)

Operating Temperature: -10◦C to 50◦C

Storage Temperature: -15◦C to 60◦C



Check out more Inverex solar inverters.

Happy Shopping with Costyo.pk

Specification: Inverex AEROX PLUS 5.2 KW SOLAR

Solar Inverter Sizes

5.2KW

Solar Inverter Types

Hybrid Inverter
